Your Guide to Efficient Underfloor Heating Systems

Underfloor Heating

Are you looking for a modern, efficient, and comfortable way to heat your Derbyshire home? Look no further than underfloor heating. At Derbyshire Renewables, we specialize in designing and installing bespoke underfloor heating systems that work seamlessly with both traditional boilers and, more importantly, modern, low-temperature heat pumps.

Why Choose Underfloor Heating?

Underfloor heating offers a superior level of comfort and efficiency compared to traditional radiators. By distributing heat evenly from the floor up, it creates a gentle, consistent warmth throughout the room. This not only eliminates cold spots but also allows you to set your thermostat at a lower temperature, saving you money on your energy bills.

Why Choose Underfloor Heating?

Underfloor heating is the ideal partner for a low-temperature heat pump. Heat pumps are most efficient when they are heating water to a lower temperature, typically between 35-45°C. This is precisely the temperature range required for a well-designed underfloor heating system to operate effectively.
By pairing these two technologies, you achieve maximum system efficiency. There is no need for a mixing valve to cool down the water before it enters the underfloor heating, which would otherwise waste energy. The system is designed to run at the optimal low temperature for both the heat pump and the underfloor heating, leading to significant energy savings and reduced running costs.

Our Underfloor Heating Installation Methods

At Derbyshire Renewables, we offer a variety of underfloor heating installation methods to suit every project, from new builds to renovations. We will help you choose the best option based on your floor type, budget, and project requirements.

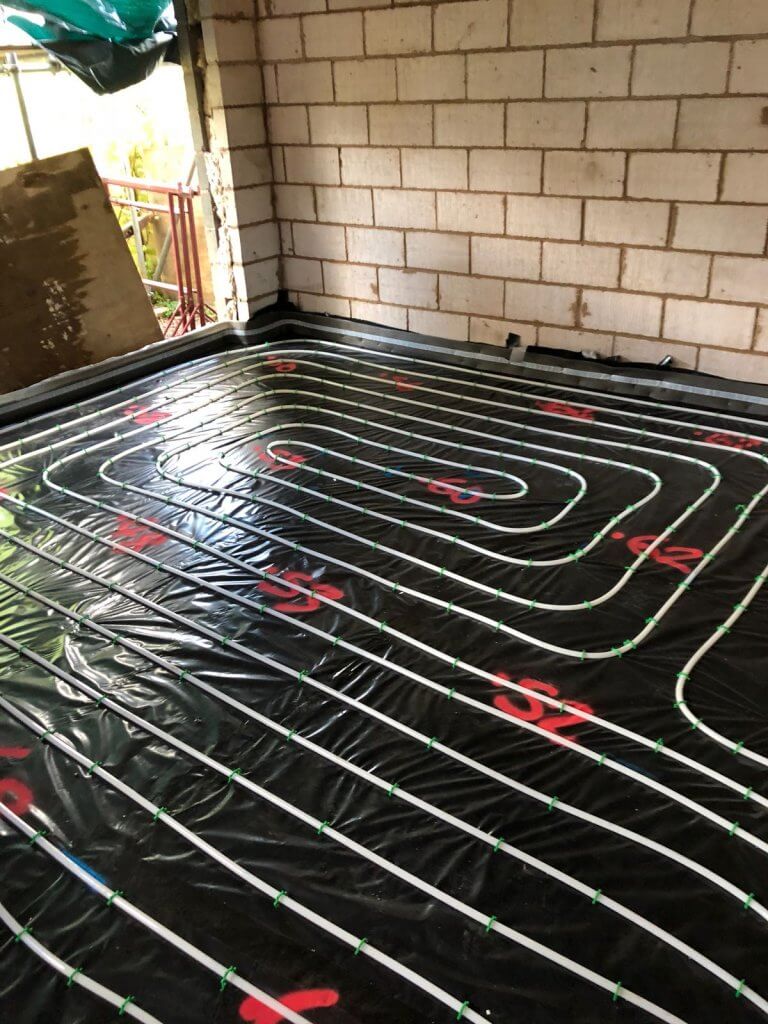

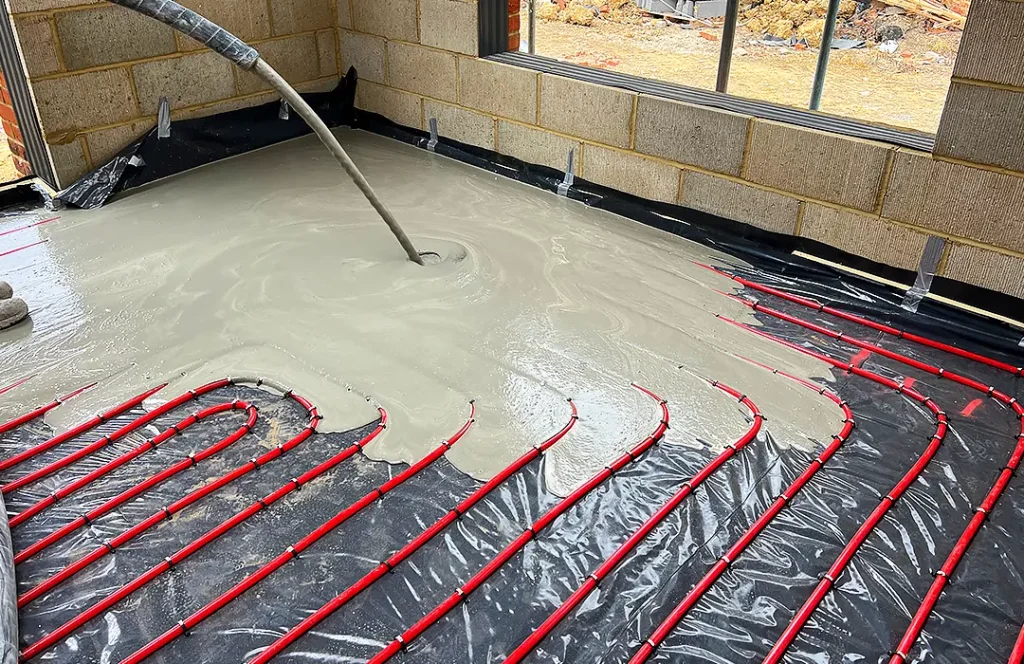

Screeded Pipes

This is the most common and robust method. The underfloor heating pipes are laid on an insulated base and then covered with a layer of liquid or sand/cement screed. This method provides excellent heat distribution and a high thermal mass, making it ideal for new builds and extensions.

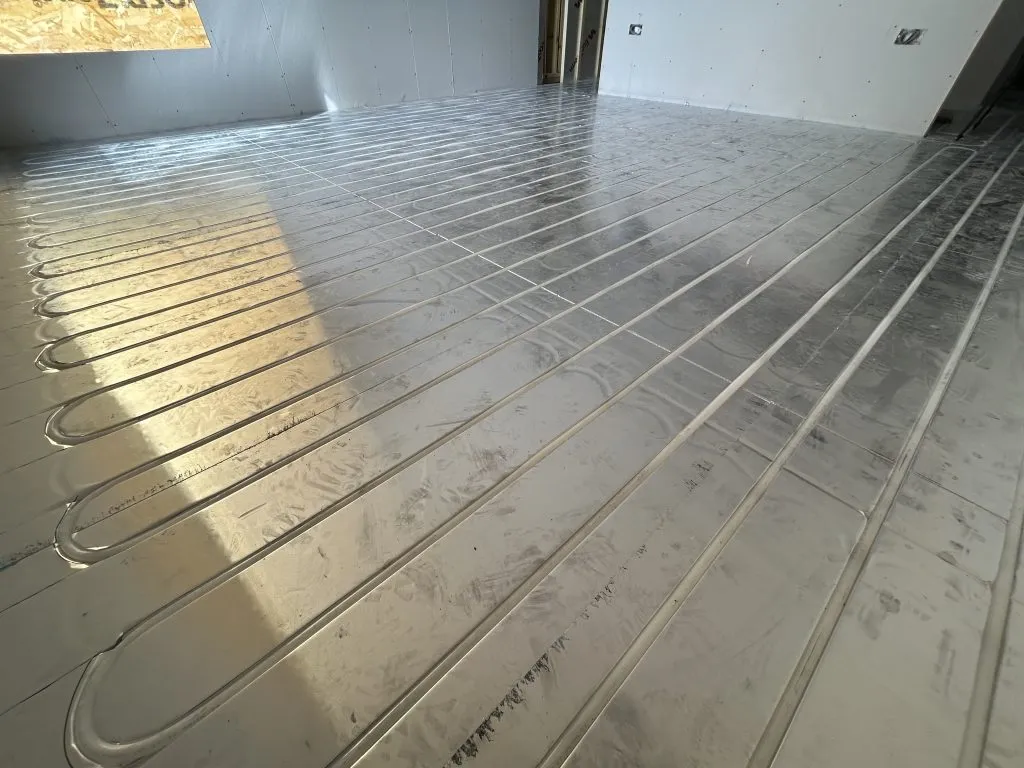

Insulated Boards

A faster and less disruptive alternative, insulated boards are pre-grooved to hold the underfloor heating pipes. They can be laid directly on top of an existing floor, making them a great choice for renovations and upstairs installations where a traditional screed would be too heavy.

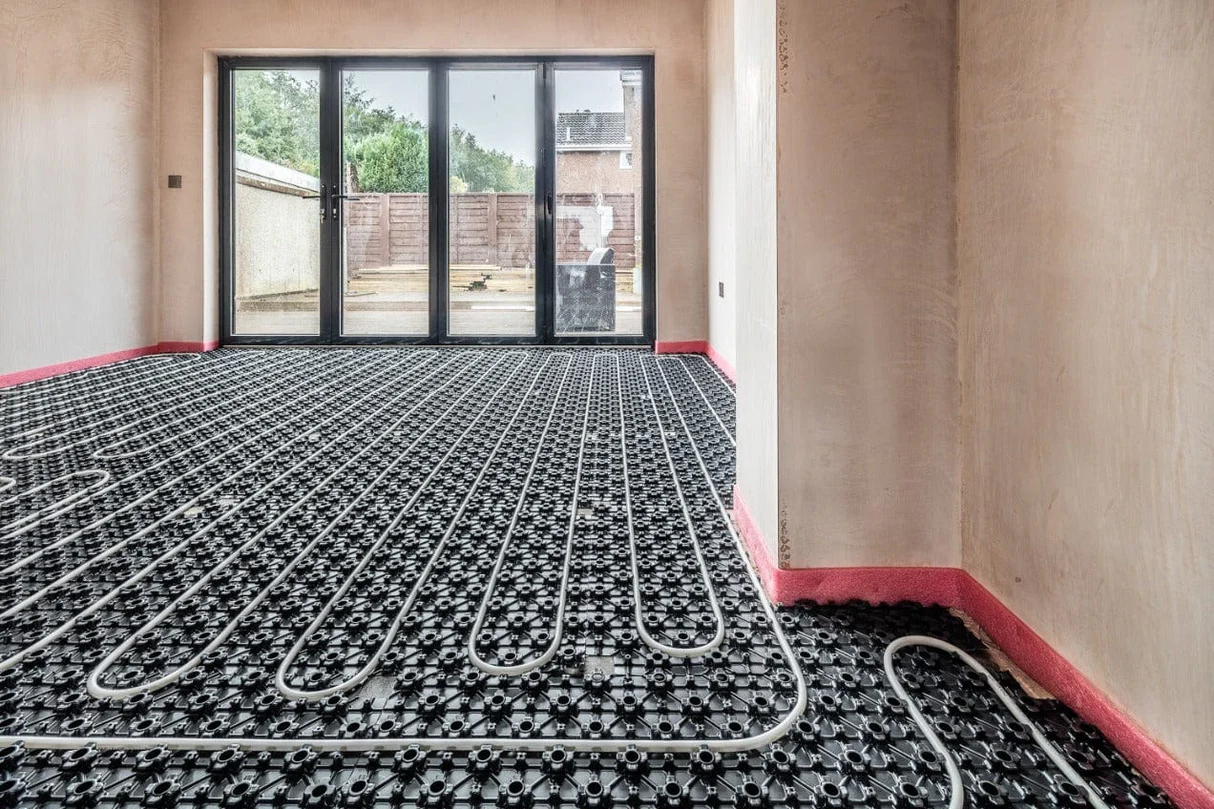

Castellated Panels

These panels are an excellent solution for retrofitting underfloor heating. The unique design with “castles” or nodules allows the pipes to be easily clipped into place without the need for additional fixings. This method is quick to install and ensures perfect pipe spacing for even heat distribution.

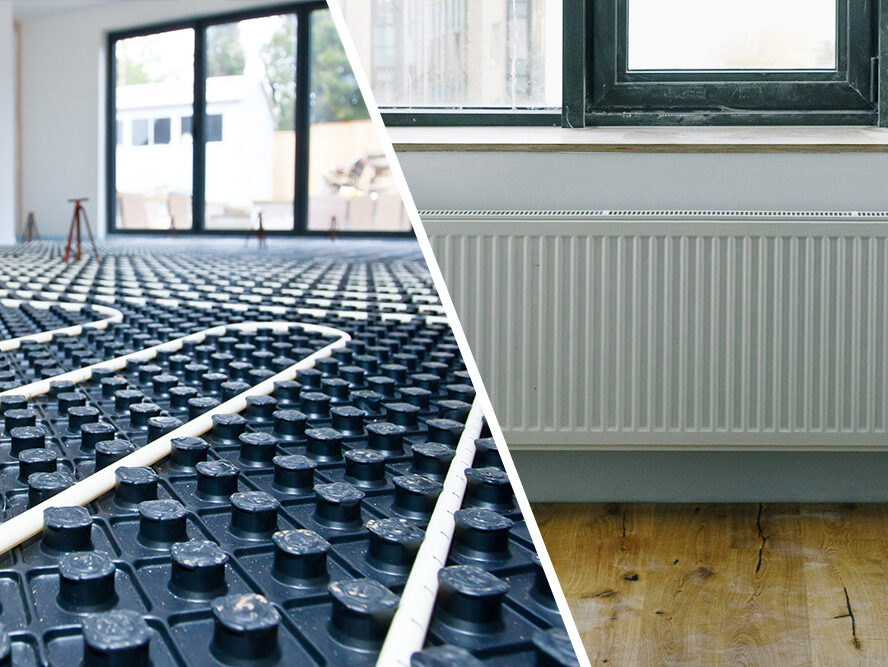

Blending Underfloor Heating with Radiators

Many homes have a mix of heating requirements. Perhaps you want the comfort of underfloor heating in your living areas but prefer to keep radiators in bedrooms or utility rooms. We can design a hybrid system that works perfectly.

For maximum efficiency, it’s best to design the entire system to operate at the same low flow temperature required by the underfloor heating. This means we will carefully size and select the radiators to ensure they can provide adequate heat at this lower temperature. This approach avoids the need for a mixing valve and allows your heat pump to operate at its highest efficiency, benefiting your entire home’s heating.

Your Local Underfloor Heating Experts in Derbyshire

Whether you are building a new home, extending your current one, or simply upgrading your heating system, Derbyshire Renewables is your trusted partner. We have the expertise to design and install a full range of underfloor heating systems that are optimized for both heat pumps and boiler systems.

Expert Design: We will create a custom design that meets the unique heating needs of your home.
Professional Installation: We ensure a high-quality, professional installation every time.
Complete Solutions: From initial consultation to final commissioning, we manage the entire project.
Ready to experience the comfort and efficiency of underfloor heating?

Contact Derbyshire Renewables today for a free, no-obligation consultation.
